What size Real Fyre P or PB Gas Burner will fit in my fireplace?

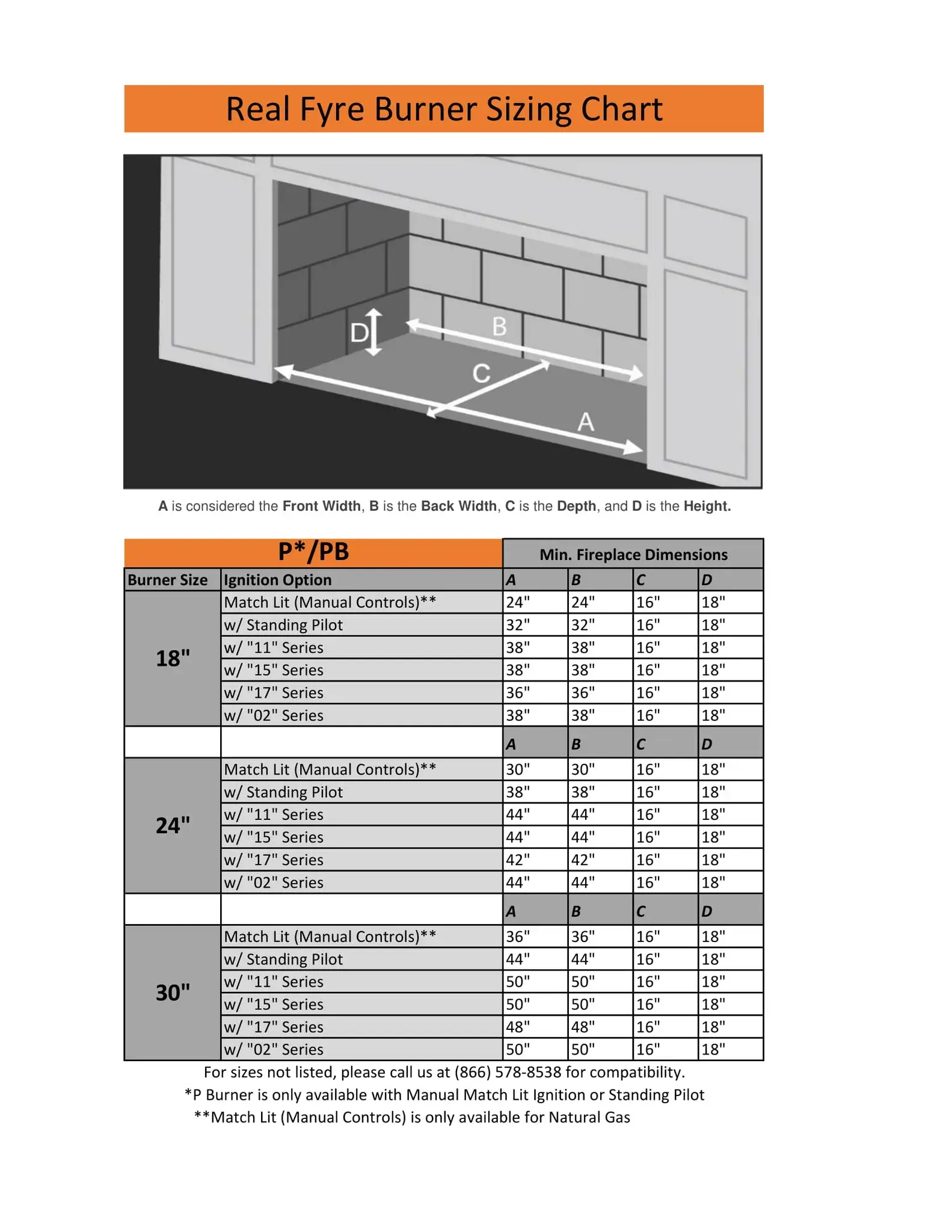

To determine the correct size Real Fyre P or PB gas burner for your fireplace, measure the front width (A), back width (B), depth (C), and height (D) of your fireplace. The table below lists the minimum fireplace dimensions required for each burner size and ignition option.

P/PB Burner Sizes:

1. 18" Burner:
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 24"
       • B (Back Width): 24"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ Standing Pilot:
       • A (Front Width): 32"
       • B (Back Width): 32"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "11" Series:
       • A (Front Width): 38"
       • B (Back Width): 38"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "15" Series:
       • A (Front Width): 38"
       • B (Back Width): 38"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "17" Series:
       • A (Front Width): 36"
       • B (Back Width): 36"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "02" Series:
       • A (Front Width): 38"
       • B (Back Width): 38"
       • C (Depth): 16"
       • D (Height): 18"
2. 24" Burner:
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 30"
       • B (Back Width): 30"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ Standing Pilot:
       • A (Front Width): 38"
       • B (Back Width): 38"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "11" Series:
       • A (Front Width): 44"
       • B (Back Width): 44"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "15" Series:
       • A (Front Width): 44"
       • B (Back Width): 44"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "17" Series:
       • A (Front Width): 42"
       • B (Back Width): 42"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "02" Series:
       • A (Front Width): 44"
       • B (Back Width): 44"
       • C (Depth): 16"
       • D (Height): 18"
3. 30" Burner:
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 36"
       • B (Back Width): 36"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ Standing Pilot:
       • A (Front Width): 44"
       • B (Back Width): 44"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "11" Series:
       • A (Front Width): 50"
       • B (Back Width): 50"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "15" Series:
       • A (Front Width): 50"
       • B (Back Width): 50"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "17" Series:
       • A (Front Width): 48"
       • B (Back Width): 48"
       • C (Depth): 16"
       • D (Height): 18"
     • w/ "02" Series:
       • A (Front Width): 50"
       • B (Back Width): 50"
       • C (Depth): 16"
       • D (Height): 18"

How to Choose:

1. Measure Your Fireplace: Take accurate measurements of the front width (A), back width (B), depth (C), and height (D).
2. Match Your Dimensions: Compare your measurements with the minimum fireplace dimensions listed for the P or PB burner size you are considering.
3. Ignition Options:
   • Match Lit (Manual Controls) is only available for natural gas.
   • Standing Pilot and Series "11", "15", "17", and "02" options provide additional ignition control features.
